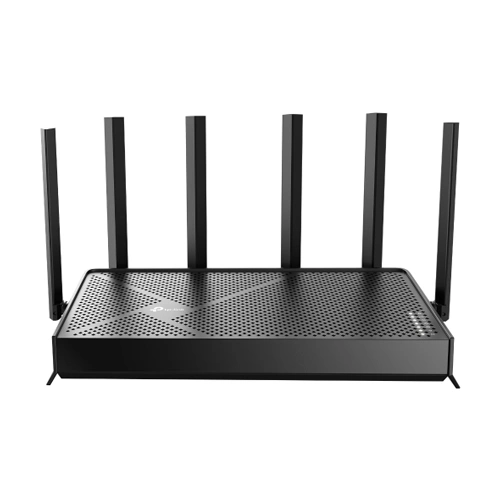

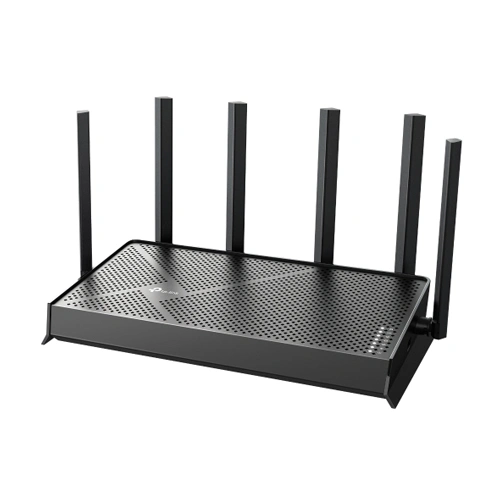

TP-Link Archer BE6500 Dual-Band BE6500 WiFi 7 Router

TP-Link Archer BE6500 Dual-Band BE6500 WiFi 7 Router

Features:

Archer BE400

BE6500 Dual-Band Wi-Fi 7 Router

• 6.5 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• Multi-Link Operation (MLO): Transmits data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.
• 2.5G Wired Connection: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.
• Maximized Coverage: 6× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.1
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
• Easy Setup and Use: Network management has never been easier with the Tether app.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
• Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.

Exploring the New Era of Home WiFi B6500 Dual-Band Wi-Fi 7 Router

6.5 Gbps Dual Band Wi-Fi 7 Speed

Powered by Wi-Fi 7 technology, Archer BE400 delivers incredible Wi-Fi speeds of up to 6.5 Gbps, enabling your devices to run at full speed

WiFi 7, WiFi Like Never Before

WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

Boosted Throughput, Unmatched Reliability

Multi-Link Operation (MLO) enables Archer BE400 to transmit data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors

2.5 Gigabit Wired Connections Devices

Experience lightning-speed connectivity with dual 2.5 Gbps ports! Archer BE400 features 1× 2.5 Gbps Internet (WAN) port and 1× 2.5 Gbps LAN port, maximizing Gigabit+ speeds delivered by your internet service provider. Break through the 1G bottleneck and unleash peak performance.

6× High Performance Antennas with Beamforming for a Broader Coverage

Equipped with 6× high performance antennas, Archer BE400 boosts the WiFi signals throughout your home. The Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

Create Whole Home Mesh WiFi

Archer BE400 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection

Your Security is Our Priority

With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network’s data and privacy

WIRELESS

WiFi Speeds:BE6500
• 5 GHz: 5764 Mbps
• 2.4 GHz: 688 Mbps

WiFi Range:3 Bedroom Houses

6× External Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity:High

Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

WiFi Capacity:

OFDMA
Simultaneously communicates with multiple clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

4 Streams
Connect your devices to more bandwidth

Advanced Features:• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network

Wireless Mode:

• Router Mode
• Access Point Mode

SECURITY:

Network Security:

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

• HomeShield Security

Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network:

• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

VPN Server:

• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server

VPN Client:

• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client

WiFi Encryption:

•WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

HARDWARE

Ethernet Ports:

• 1× 2.5 Gbps WAN
• 1× 2.5 Gbps LAN
• 3× 1 Gbps LAN

USB Support:

1× USB 3.0

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server

Buttons:

• Power Button
• Wi-Fi/LED Button
• WPS Button
• Reset Button

Power:

12 V ⎓ 2.5 A

SOFTWARE:

Protocol:

• IPv4
• IPv6

Service Kit:

HomeShield

Parental Controls:

Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Type:

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service:

QoS by Device

Cloud Service:

• Auto Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding:

• Port Forwarding
• Port Triggering
• DMZ
• UPnP

IPTV:

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP:

• Address Reservation
• DHCP Client List
• Server

DDNS

• TP-Link
• NO-IP
• DynDNS

Management Features:

• Tether App
• Webpage

OTHER

System Requirements:

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications:

CE, FCC, RoHS

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing

Warranty: 3 Years

Note: Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only

Specifications

Wi-Fi Speed	BE6500
Coverage	Large Homes
Category	Wi-Fi Router
Wi-Fi Band	Dual-Band
