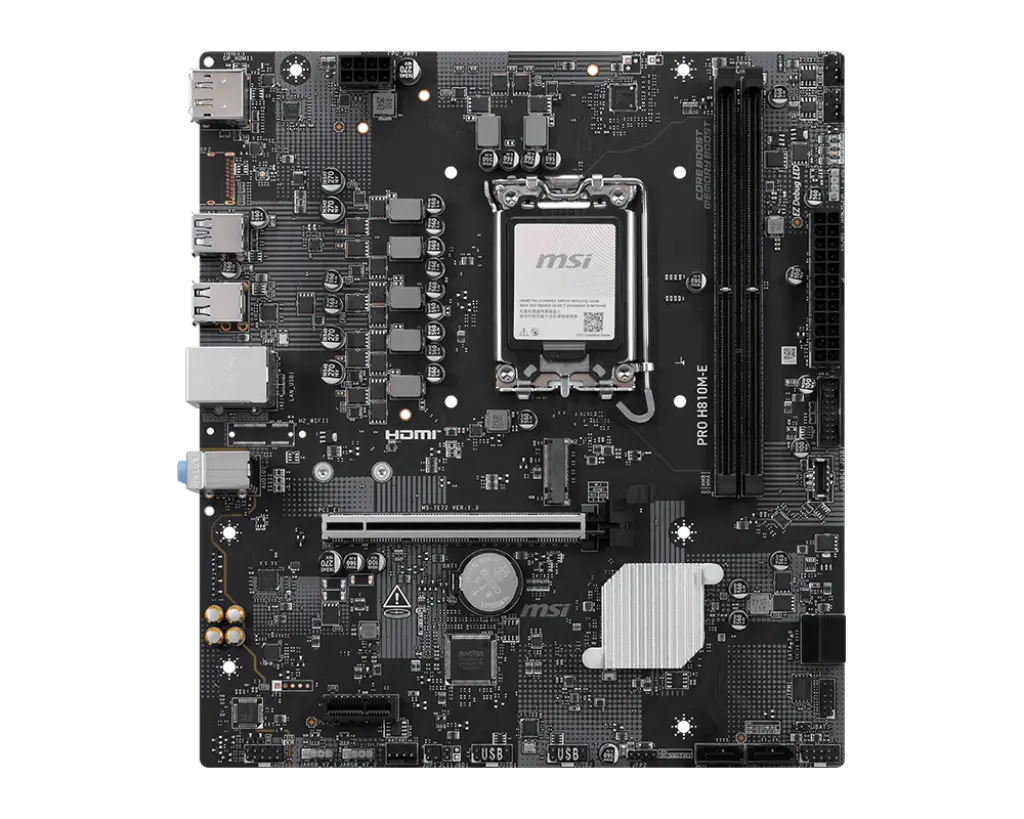

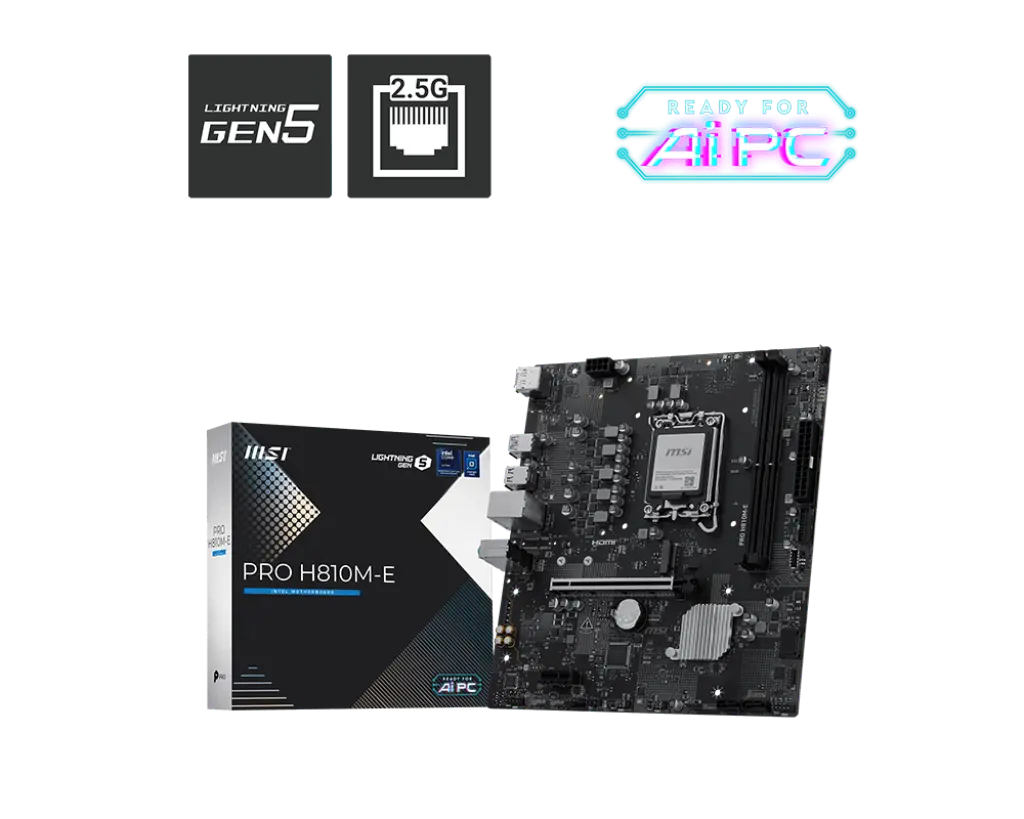

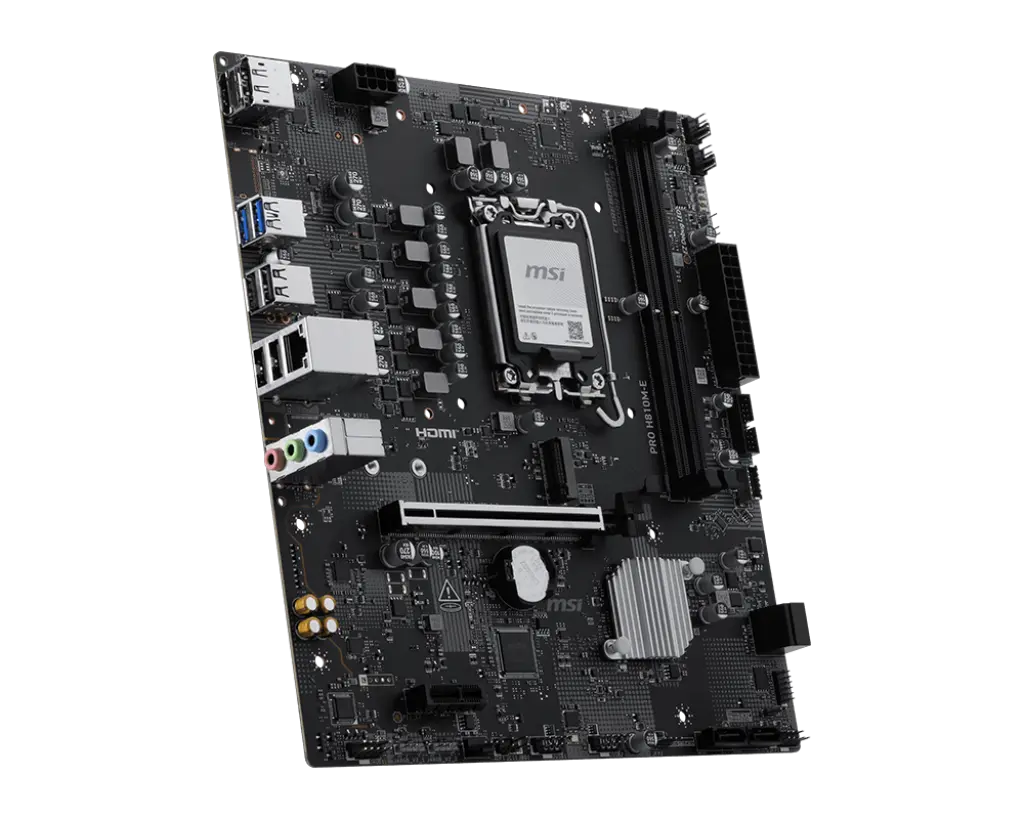

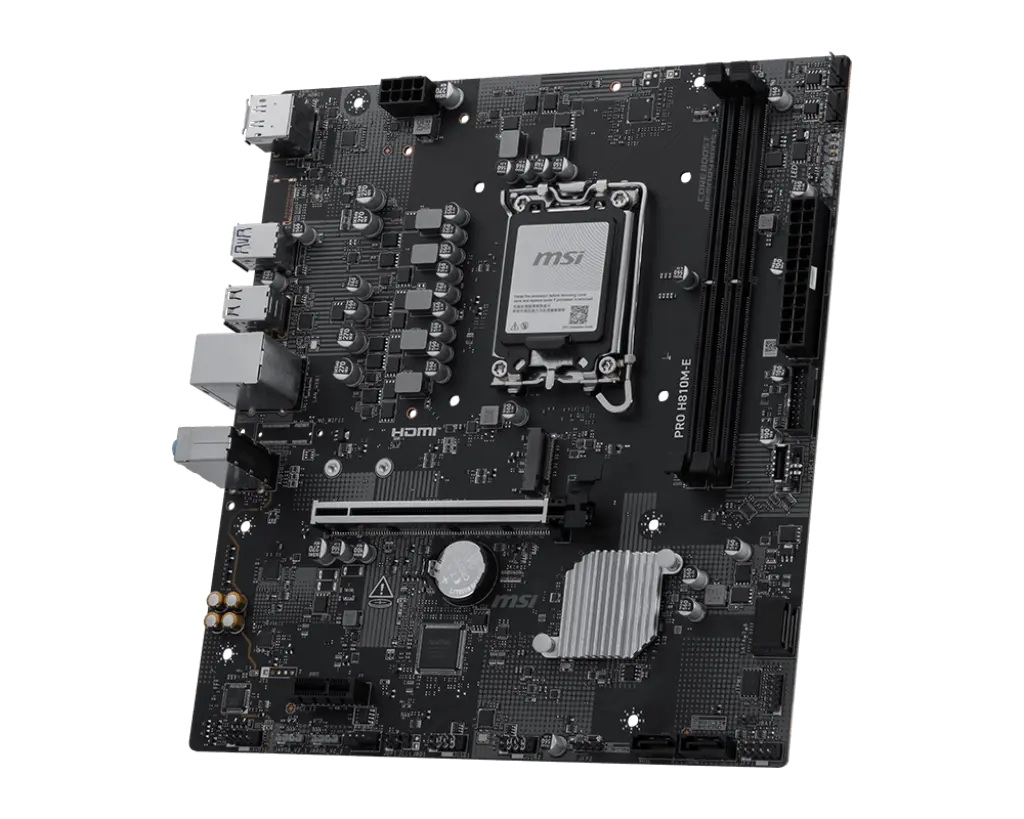

MSI PRO H810M-E Intel mATX Motherboard

Original price was: ₹17,999.Current price is: ₹7,800.

(Inc. of all taxes)

Found A Better Price? Click here

SKU/Model No:

PRO H810M-E

Category:

Motherboard, MSI

Estimated Delivery: Sat, 06 Jun - Tue, 09 Jun 2026

Share Product:

MSI PRO H810M-E Intel mATX Motherboard

Support Intel^® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
EZ DIY: EZ PCIe Clip II
Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications

Chipset

INTEL H810

CPU

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400 MT/s
• 1DPC 2R Max speed up to 6400 MT/sSupports Intel^® POR Speed and JEDEC Speed
Supports Intel^® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

Audio

Realtek^® ALC897 Codec
7.1-Channel High Definition Audio

Storage

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions.

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)

LAN

Realtek^® 8125D 2.5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

BACK PANEL PORTS

DisplayPort
USB 5Gbps Type-A
USB 2.0
2.5G LAN
Audio Connectors
HDMI^TM
USB 2.0

OPERATING SYSTEM

Support for Windows^® 11 64-bit

PCB Info

mATX
220mmx243.84mm

LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

Warranty

3 Years

Note**

Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.

Additional information

brand	MSI
motherboard-cpu-support	Intel LGA1851
motherboard-max-memory	128GB
motherboard-size	mATX
