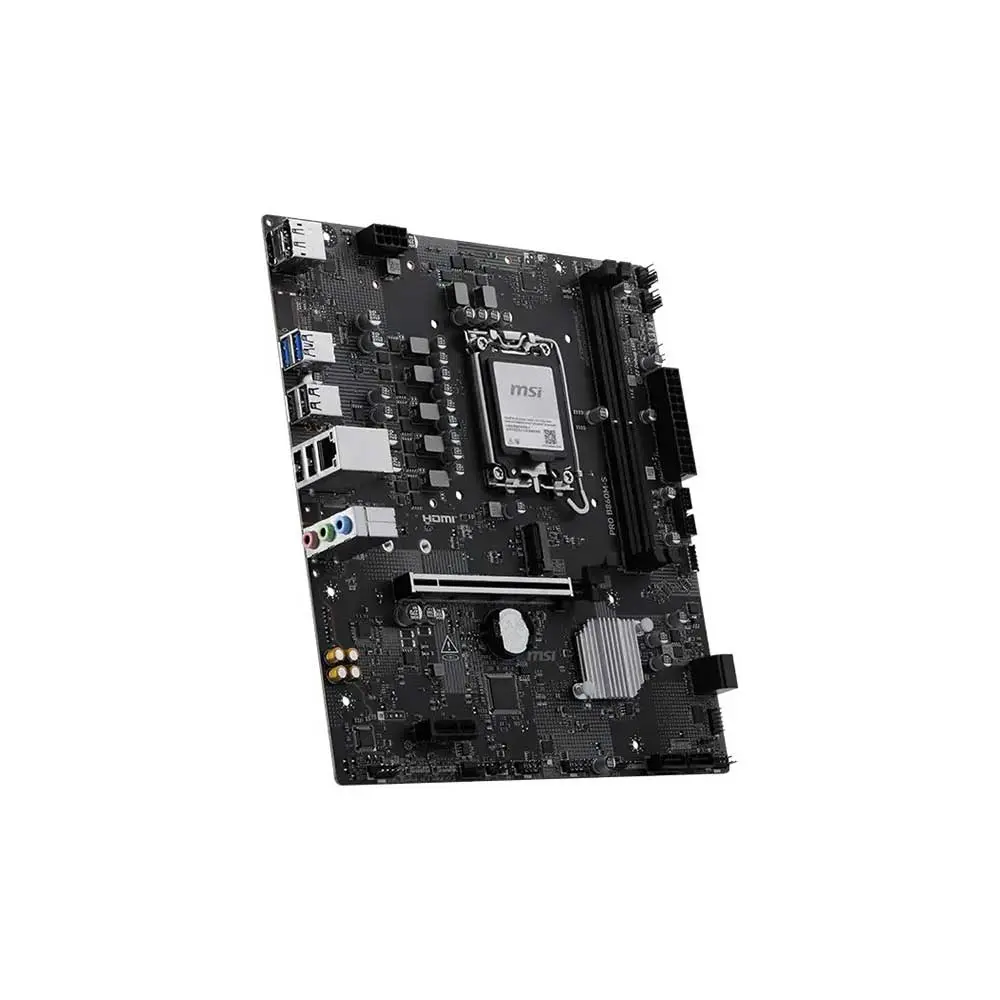

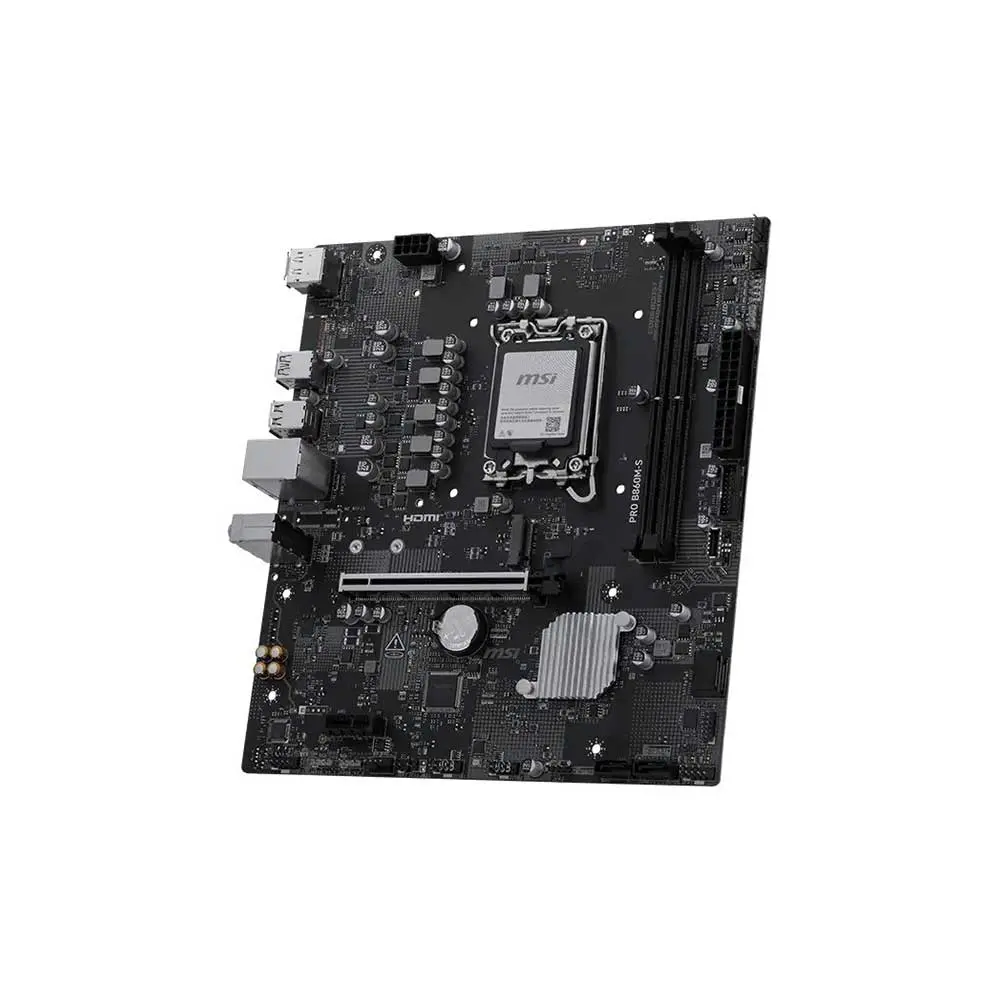

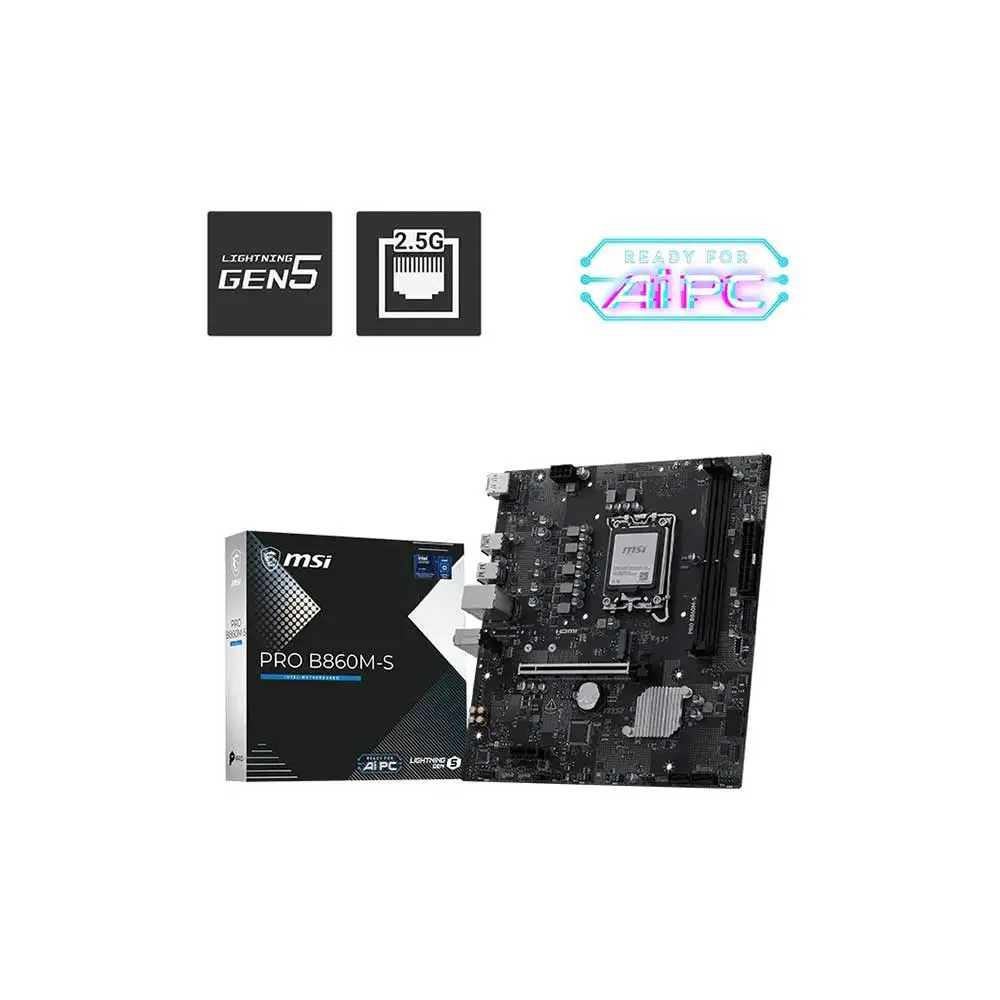

MSI Pro B860M-S offers a simple design with a harmonious color scheme that perfectly matches both white and black PC builds. It is engineered with 2.5G LAN and PCIe 5.0, ready for the Intel® Core™ Ultra processors.
| Chipset | INTEL B860 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5 UDIMM, maximum memory capacity 128GB Supported memory DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800 MT/s • 1DPC 2R Max speed up to 6400 MT/sSupports Intel ® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel ® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Integrated Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slots (quantity) 1x PCI-E x1 slots (quantity) PCI_E1 Gen PCIe 5.0 supports up to x16 (from CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (from Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (quantity) Source M.2_1 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (quantity) |
| Raid | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
| LAN | Realtek ® 8125D 2.5Gbps LAN |
| Internal IO | 1x Power Connector (ATX_PWR) , 1x Power Connector (CPU_PWR) , 1x CPU Fan Connector , 2x System Fan Connectors, 2x Front Panel Connectors (JFP) , 1x Chassis Intrusion Sensor Connector (JCI) , 1x Front Audio Connector (JAUD) , 3x Addressable V2 RGB LED Connectors (JARGB_V2) , 1x TPM Connector (Support TPM 2.0) , 4x USB 2.0 Ports , 2x USB 5Gbps Type A Ports, 1x USB 5Gbps Type C Ports |
| LED Feature | 4x EZ Debug LED 1x EZ Memory Detection LED |
| Back Panel Ports |
|
| Operating System | Support for Windows ® 11 64-bit |
| PCB Info | mATX 220mm x 243.84mm |
| Warranty | 2 Years |
| Note** | **Prices, Specificiations & Features are subject to change without notice |
| brand | |
|---|---|
| motherboard-cpu-support | |
| motherboard-max-memory | |
| motherboard-memory-support | |
| motherboard-size |
