| Chipset |
AMD A520 |
| CPU |
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Socket AM4 |
| Memory |
2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
| Ryzen™ 5000 Series Processors max. overclocking frequency: |
| • 1DPC 1R Max speed up to 4600+ MT/s |
| • 1DPC 2R Max speed up to 3866+ MT/s |
|
| Supports JEDEC Speed |
| Supports Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| Supports Memory Overclocking by A-XMP OC mode |
|
| • The DIMM slots on this motherboard have double-sided latches. |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics |
1x HDMI™ |
| Support HDMITM 1.4, maximum resolution of 4K 30Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
1x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) |
| *The supported specification depends on installed processor. |
| Audio |
Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| Storage |
1x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices |
| 4x SATA 6G |
| RAID |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |

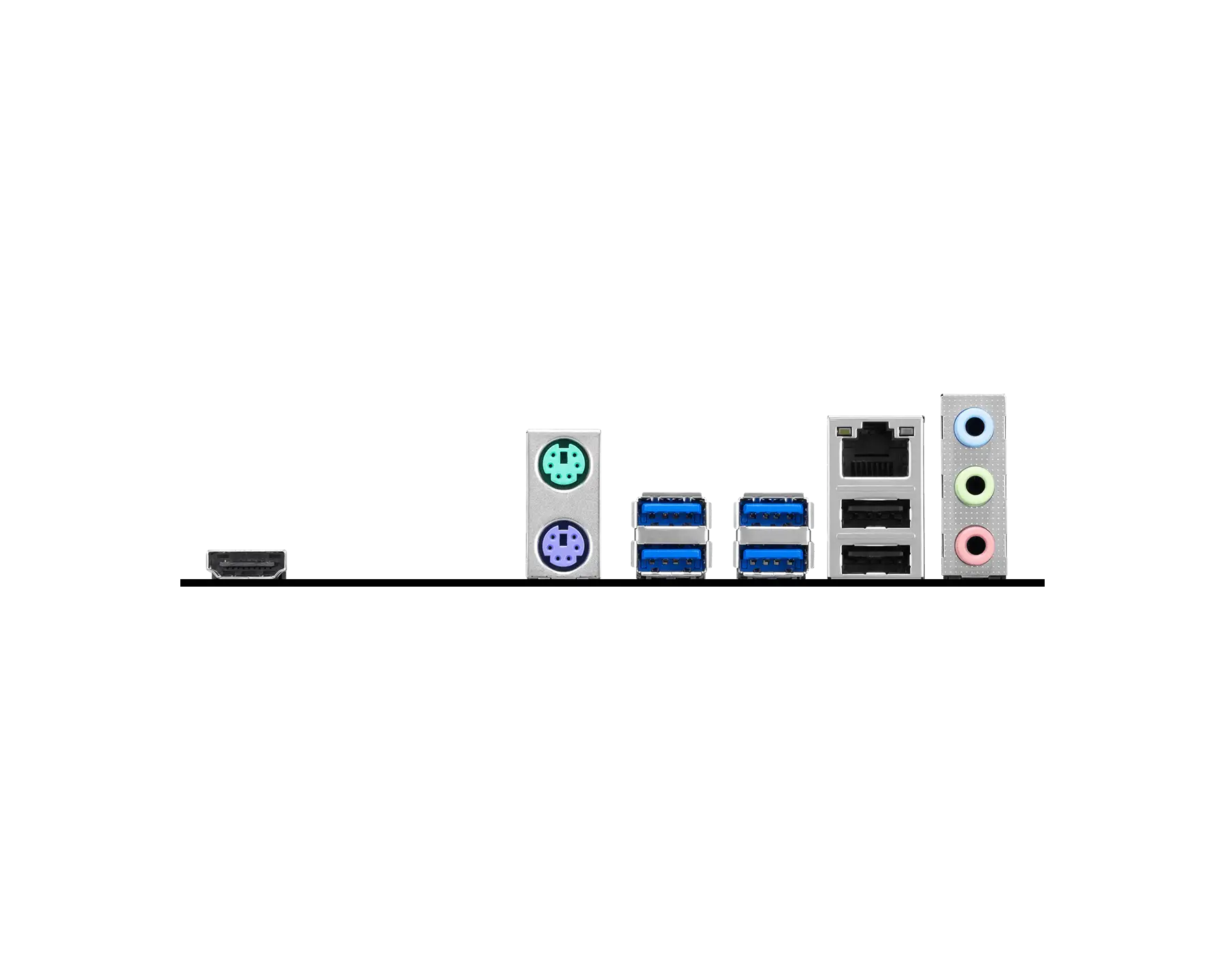

| USB |
2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) |
| 2x USB 5Gbps Type A (Front) |
| LAN |
Realtek® RTL8111H 1Gbps LAN |
| Internal IO |
1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 4x USB 2.0 ports |
| 2x USB 5Gbps Type A ports |
| LED FEATURE |
4x EZ Debug LED |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit |
| PCB Info |
mATX
200mmx236mm |
| Warranty |
2 Years |
| Note** |
**Prices, Specifications & Features are subject to change without notice |
