| Chipset |
INTEL B860 |
| CPU |
Supports Intel® Core™ Ultra Processors (Series 2) |
| LGA 1851 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 8800+ MT/s |
| • 1DPC 2R Max speed up to 7200+ MT/s |
| • 2DPC 1R Max speed up to 6400+ MT/s |
| • 2DPC 2R Max speed up to 5600+ MT/s |
|
| Supports Intel® POR Speed and JEDEC Speed |
| Supports Memory Overclocking and Intel® XMP 3.0 |
| Supports Dual-Controller Dual-Channel mode |
| Supports Non-ECC, Un-buffered memory |
| Supports CUDIMM |
|
| • The DIMM slots on this motherboard only have single-sided latches. |
| • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics |
1x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| 1x DisplayPort |
| Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot |
4x PCI-E x16 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio |
Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| Storage |
3x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices |
| 4x SATA 6G |
|
| *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

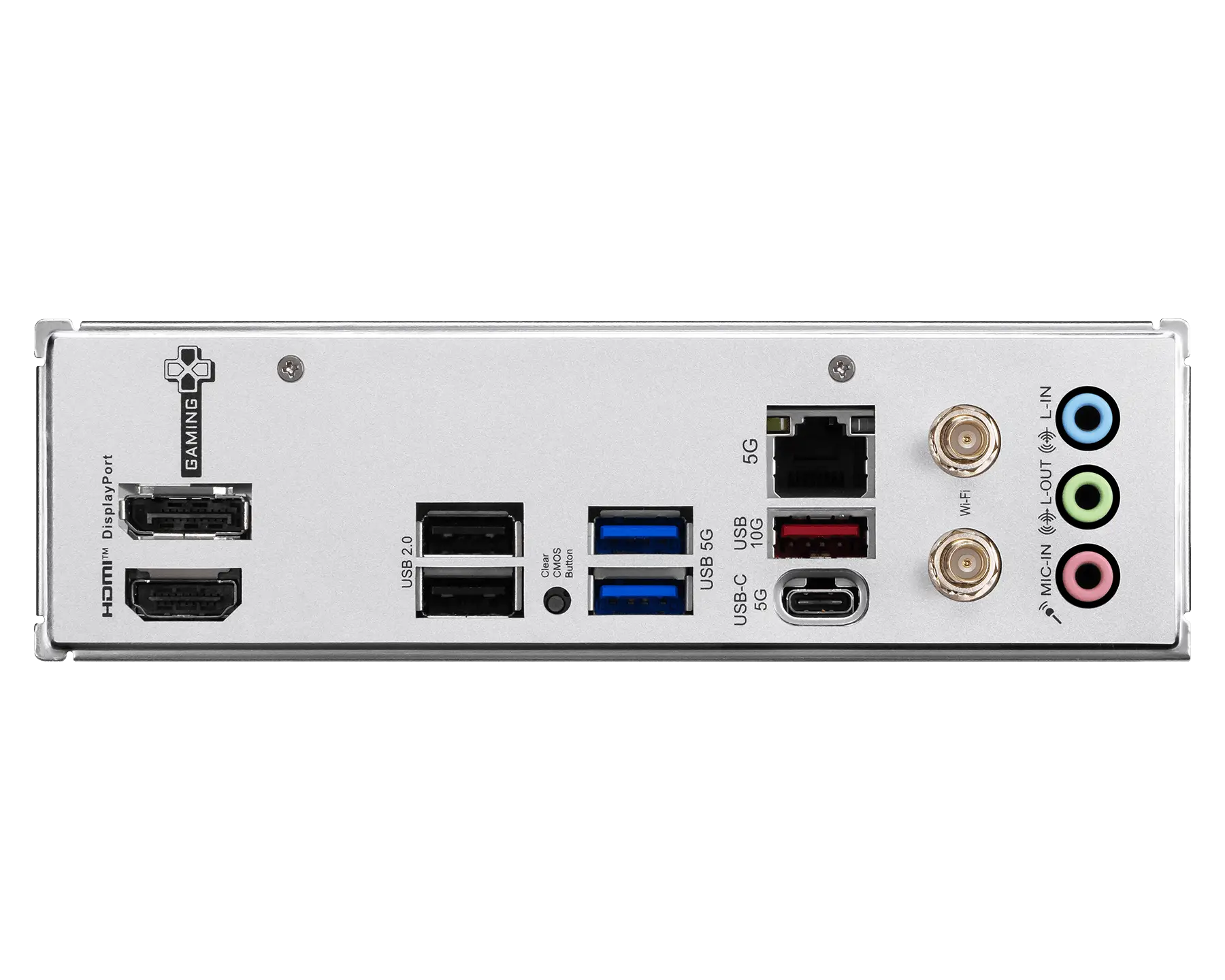

| USB |
2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 2x USB 5Gbps Type A (Rear) |
| 1x USB 5Gbps Type C (Rear) |
| 4x USB 5Gbps Type A (Front) |
| 1x USB 10Gbps Type A (Rear) |
| 1x USB 10Gbps Type C (Front) |
| LAN |
Intel® Killer™ E5000 5Gbps LAN |
| Internal IO |
1x Thunderbolt5 card connector(JTBT5, support RTD3) |
| 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x Power Connector(PCIE_PWR 8pin) |
| 1x CPU Fan |
| 1x Combo Fan (Pump_Sys Fan) |
| 3x System Fan |
| 1x EZ Conn-header (JAF_1) |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 1x Tuning Controller connector(JDASH) |
| 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 4x USB 5Gbps Type A ports |
| 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 6E Solution |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
| Supports Bluetooth® 5.3**, FIPS, FISMA |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE |
4x EZ Debug LED |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit |
| PCB Info |
mATX |
| 243.84mmx243.84mm |
| Warranty |
2 Years |
| Note** |
**Prices, Specificiations & Features are subject to change without notice |
