| Chipset |
AMD A620A |
| CPU |
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 |
| Memory |
2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 7200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Max. overclocking:
• 1DPC 1R Max speed up to 7200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/sSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only* |
| Onboard Graphics |
1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot |
1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Storage |
2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G (Qty)M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| Raid |
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| USB |
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front) |
| LAN |
Realtek® RTL8125D 2.5G LAN |
| Internal IO |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports |
| Wireless LAN & Bluetooth |
Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**, FIPS, FISMA |
| LED Feature |
4x EZ Debug LED |

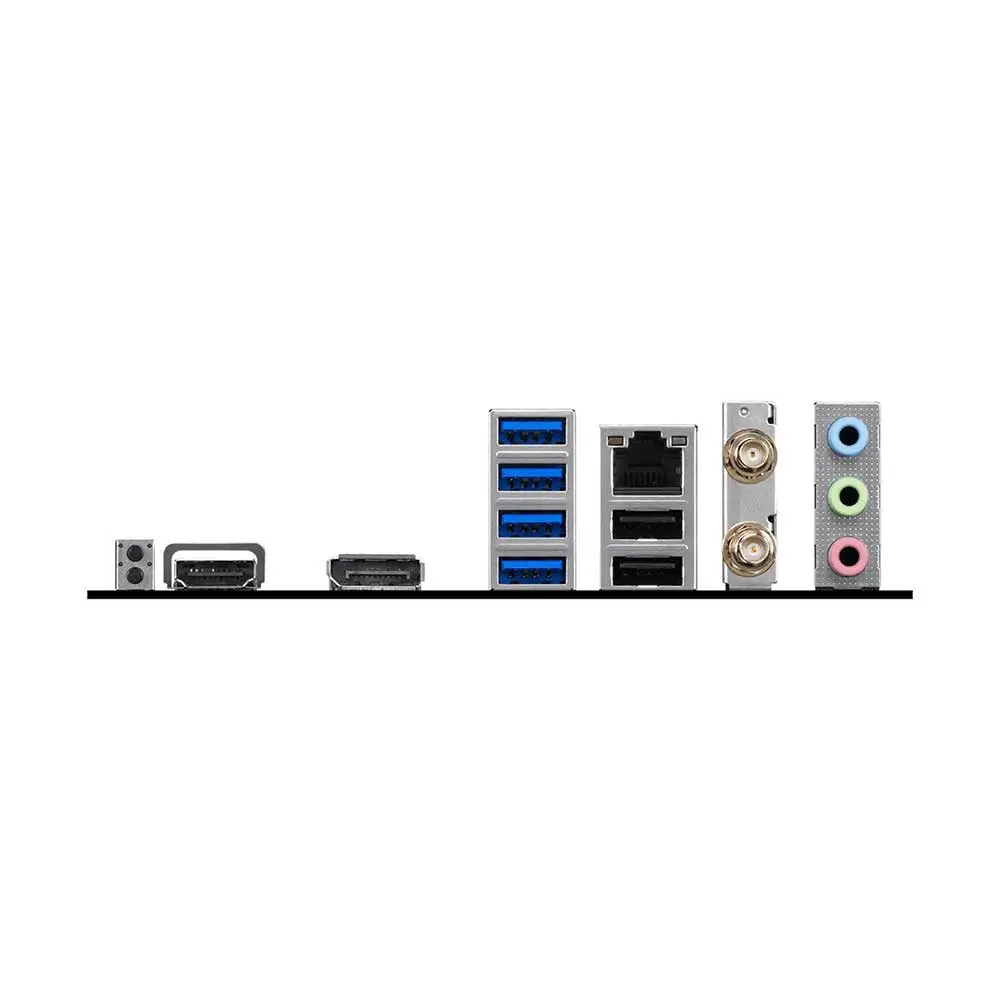

| Back Panel Ports |
USB 10Gbps Type-A
USB 5Gbps Type-A
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 10Gbps Type-C
Flash BIOS Button
Clear CMOS Button
USB 5Gbps Type-A
S/PDIF-OUT |
| Operating System |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
mATX
226mmx243.84mm |
| Warranty |
2 Years |
| Note** |
**Prices, Specifications & Features are subject to change without notice |
