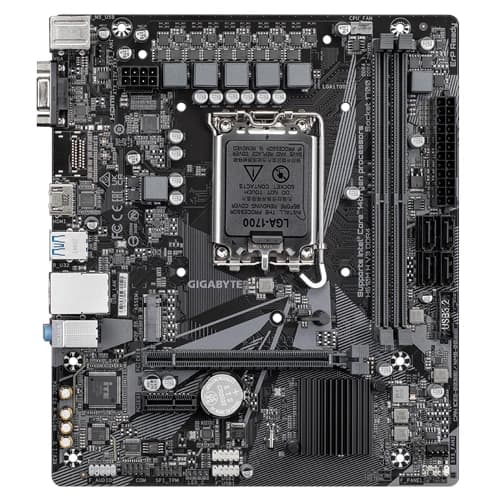

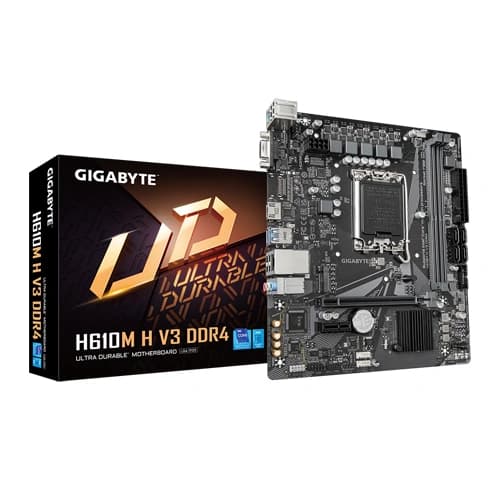

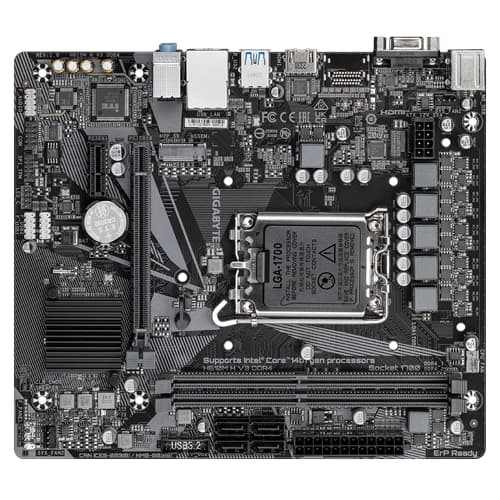

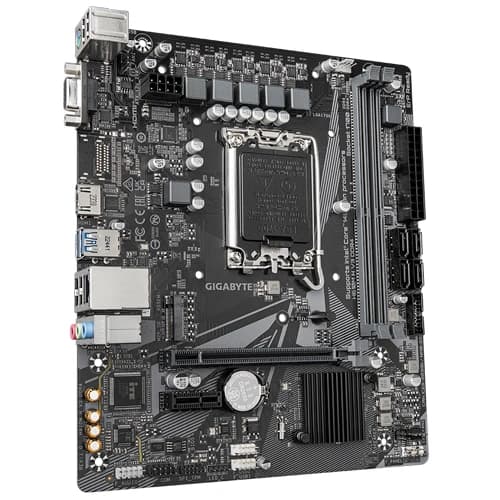

GIGABYTE H610M H V3 DDR4 M-ATX Motherboard

GIGABYTE H610M H V3 DDR4 M-ATX Motherboard

Original price was: ₹14,800.Current price is: ₹6,399.

(Inc. of all taxes)

Found A Better Price? Click here

SKU/Model No:

H610M H V3 DDR4

Category:

Gigabyte, Motherboard

GIGABYTE H610M H V3 DDR4 M-ATX Motherboard

Features:

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

Supports Intel® Core™ 14th/ 13th /12th processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
4+1+1 Hybrid Digital VRM Design
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

4+1+1 Phases Low RDS(on) MOSFETs
Solid capacitors to improve transient response and minimize oscillation.
8-pin Solid Pin CPU Power Connector.

Solid Pin Power Connectors

H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

Motherboard
Platform	INTEL
Socket	LGA1700
Cpu Type	14th Gen,13th Gen,12th Gen,Pentium,Celeron
Chipset	H610
Memory Speed	up to 3200
Max Memory Support	64 GB
Supported Memory Type	DDR4
Channel Supported	Dual Channel
Memory Feature	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics Port	1 x D-Sub Port,1 x HDMI Port
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

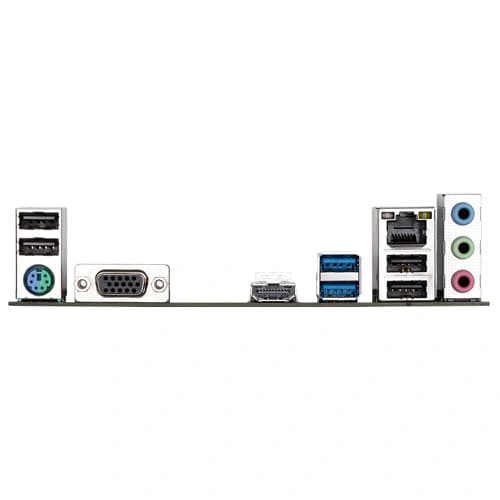

Back Panel I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header
Form Factor	Micro-ATX
Warranty	3 Years

Additional information

brand	Gigabyte
motherboard-memory-support	DDR4
motherboard-max-memory	64 GB
